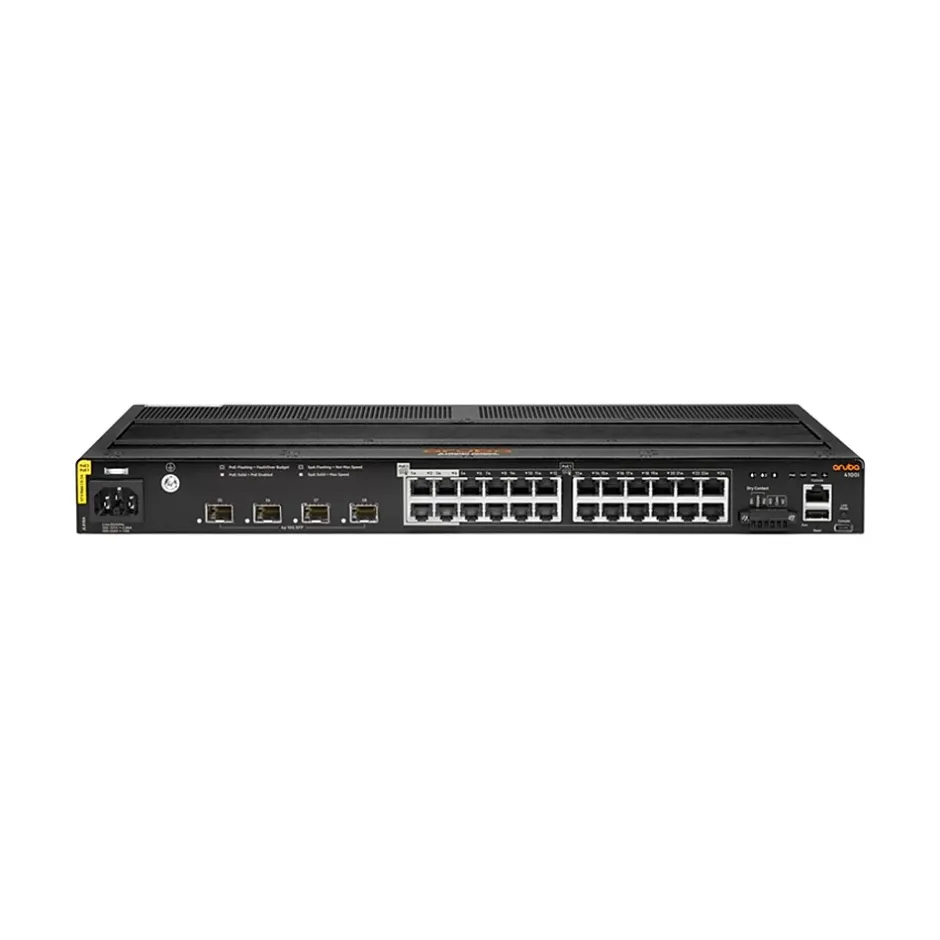

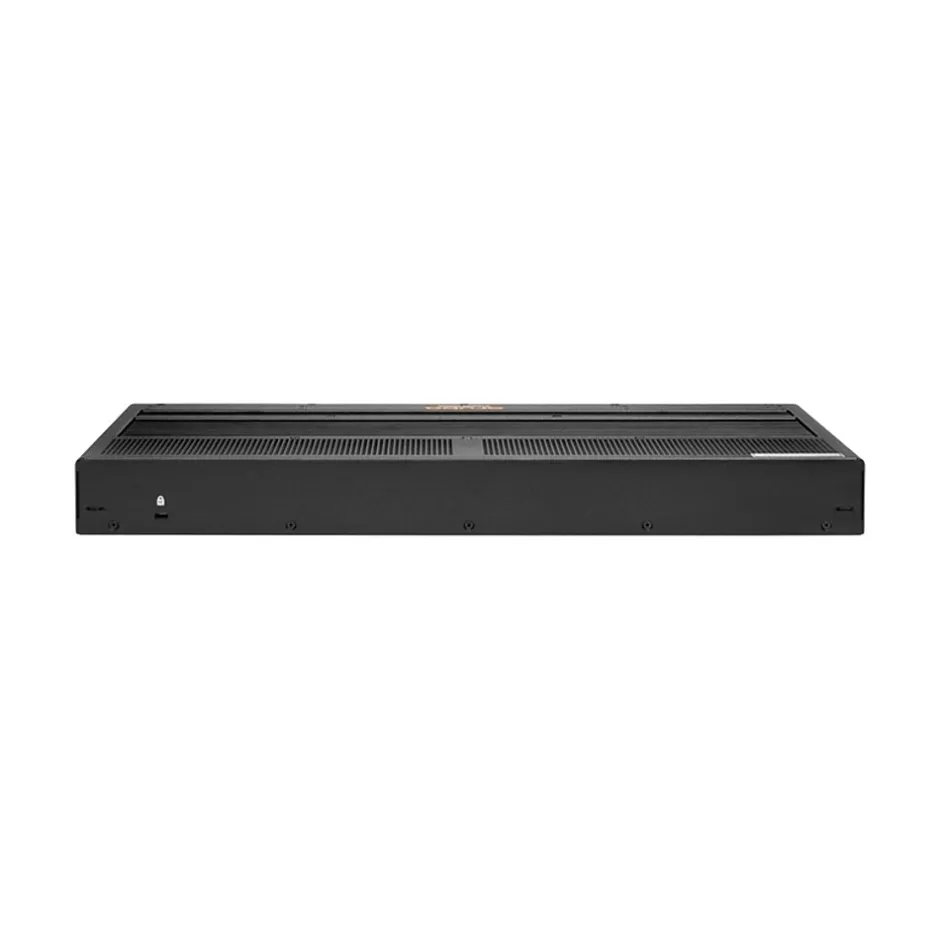

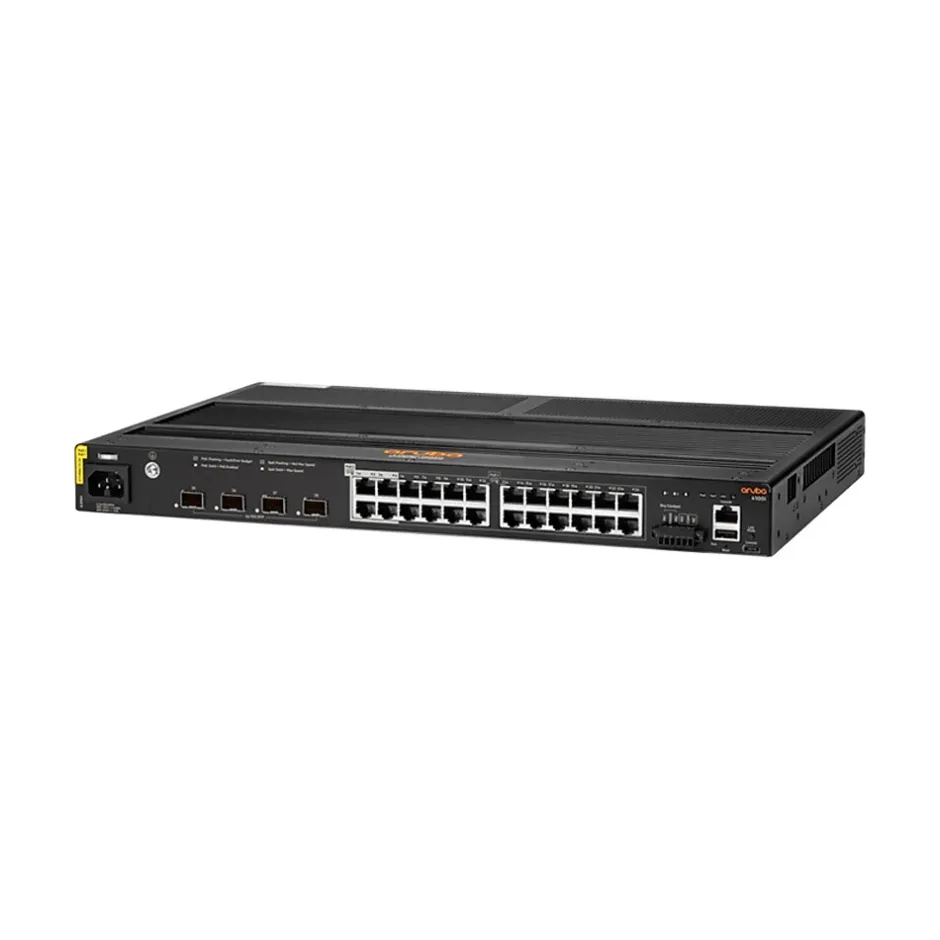

The Aruba CX 4100i switch series is a modern family of ruggedized Ethernet switches ideal for connecting IoT, access points, and user devices in harsh environments. Created for high performance, reliable, and access with enhanced security, the Aruba CX 4100i switches provide versatile deployment options for enterprise networks extending beyond carpeted areas to challenging outdoor and industrial spaces. Based on the programmable AOS-CX operating system used across the Aruba CX portfolio, this IP30 ruggedized series helps deliver a more consistent, more efficient operator experience. This Layer 2 series has convenient built-in high-speed uplinks, supports both 30W and 60W PoE, and is ready for deployment with fan less 12 port DIN mount and 24 port 1U rack mount models. With robust QoS, support for static routing, and IPv6, the Aruba CX 4100i also simplifies ownership with no switch software licensing requirements.
- High-performance ruggedized Ethernet switch is great for connecting IoT, access points, and user devices in harsh environments.
- Features 4 x 100M/1G BaseT Class 6 PoE ports supporting up to 60W per port, 20 x 100M/1G BaseT Class 4 PoE ports supporting up to 30W per port, and 4 x 1G/10G SFP ports
- Switching capacity: up to 128Gbps; routing throughput: up to 95Mpps
- Mounts to an EIA/TIA standard 19″ telco rack (mounting brackets included with product)
- SNMPv1/v2c/v3 support provides read capability of industry-standard Management Information Base (MIB), and private extensions
- With robust QoS, support for static routing, and IPv6, it also simplifies ownership with no switch software licensing requirements
- Management flexibility with support for Aruba Central, easy-to-use Web GUI, CLI, and Aruba NetEdit
- Fixed internal power supply (300W); power consumption is 23W
- Versatile form factors deliver both 30W and 60W PoE to optimize IoT power
- Built-in high-speed 1/10GbE uplinks for demanding applications
- Robust protection for sub-station applications and high tolerances for railway rolling stock, signaling and telecommunications
- Secure and simple access for IoT and users with Aruba Dynamic Segmentation
- Management flexibility with support for Aruba Central, easy-to-use Web GUI, CLI, and Aruba NetEdit
- No switch software licensing required
- 5-year manufacturer limited warranty
| Attribute name | Attribute value |
|---|---|
| Data Rate Performances | 128 |
| Depth in Inches Full-Duplex is a type of communication in which data can be transmitted in both directions on a signal carrier at the same time. | Yes |
| Gaming An uplink port is a port on a router, or switch, designed to connect a device to another device. | Yes |
| Height in Inches The power supply’s voltage, which ultimately powers the device. | 100-240V |
| Jumbo Frame Link Aggregation Control Protocol (LACP) is the practice of bundling individual links on a network to promote better performance outcomes. | Yes |
| Layer Maximum Data Transfer Rate is the highest rate at which a device can transfer data (in Mbps). For devices with upload and download capabilities, the maximum data transfer rate always refers to download speeds. | More than 3000 |
| Network Management Type The number of Ethernet ports on a networking hardware device that Ethernet cables plug into. | 24 |
| Performance Class | Yes |
| Power Supply Power over Ethernet (PoE) is a standard that allows electrical power to pass through Ethernet cables. Devices with built-in PoE do not require any additional power source other than an Ethernet cable. | Yes |
| Quality of Service Simple Network Management Protocol (SNMP) is an Internet Standard protocol used to monitor and manage the network devices connected over an IP. | Yes |
| Series or Collection | Non-Stackable |
| Switch Form Factor Actual manufacturer name for the color of the product. | Black |
| VLAN Support Specifies the length of the manufacturer warranty included with the product. | 5 Year |
| Weight (lbs.) The overall width of the product, measured left to right. | 17.5 |
