The Vertiv Liebert GXT5 UPS, with a capacity of 2000VA/1800W, is a 2U compact and efficient UPS solution for ensuring the health and availability of IT infrastructure. With online, double conversion technology, the Vertiv Liebert GXT5 UPS protects critical equipment against outages and every type of power disturbance without drawing on battery power, extending battery life and minimizing replacements.
- 6-Outlet on-line double conversion UPS solution which offers premium power outage protection and continuous power conditioning in a compact and flexible rack/tower form factor
- Reliable, easy-to-manage power protection and battery backup with 2000VA (1800W) capacity.
- 4 hours charge time to 90% capacity after a complete discharge with full load connected
- 120VAC (user configurable: 110V, 115V, 120V, 125V) output voltage, 50/60Hz, single-phase, 2 wire-plus-ground
- Made in 2U rack-mountable form factor
- Utilizes valve-regulated, non-spillable, lead acid cells battery

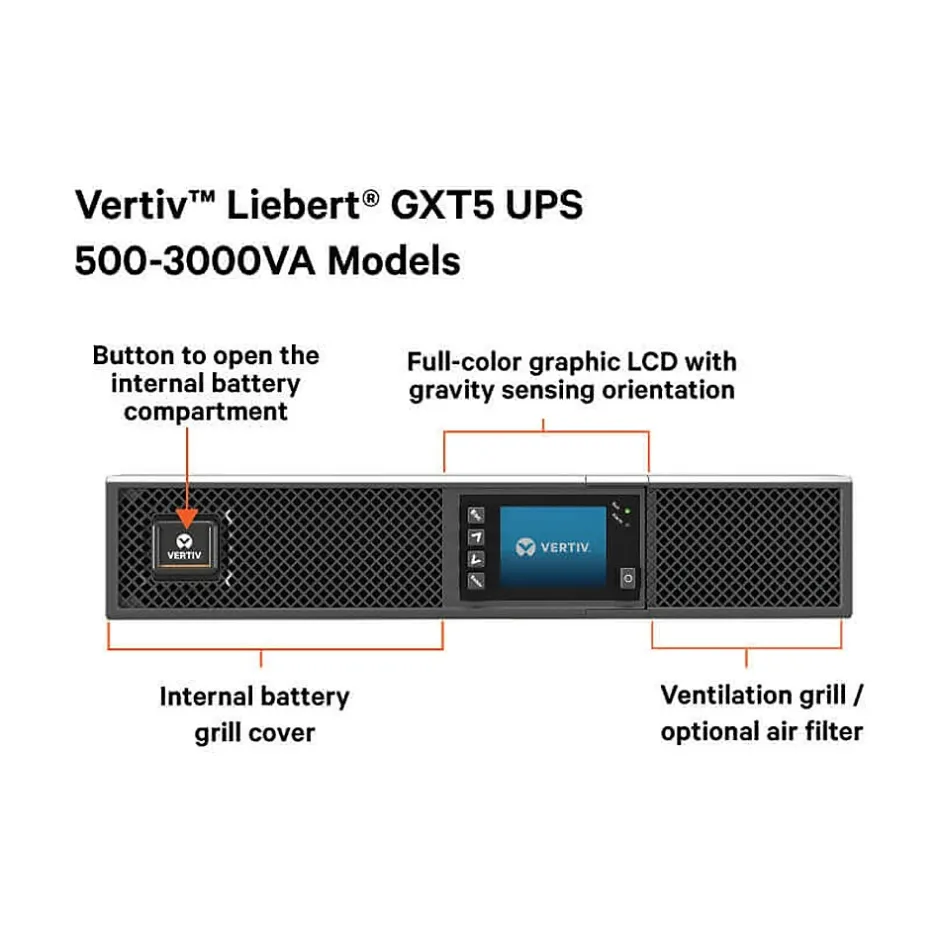

- User-friendly interface that includes color graphic display with gravity sensing feature
- Remote management capabilities support real-time environmental monitoring and alarm notifications
- Supports SNMP, web, and environmental sensors with included RDU101 communications card
- Individually programmable output power receptacles
- Rack / tower convertible systems
- Hot-swappable internal battery and scalable power with auto-detection of external battery cabinets
- 2019 ENERGY STAR 2.0 certification and high operating efficiency in standard and eco-mode
- Meets or exceeds ANSI C62.41 Category B/ ISTA Procedure 1A / UL 1778 4th Edition and CSA 22.2 No 107.3/ FCC Part 15 (Class A) – CISPR22 Class A (RFI)/ WEEE and ROHS2 REACH standards
- 3-year manufacturer limited warranty
| Attribute name | Attribute value |
|---|---|
| *features | |
| Battery Life (Years) | On-Line UPS |
| Mountable Refers to the amount of time it takes for the battery to reach a full charge | 4 |
| Battery Backup LCD Display | Lead Acid Battery |
| On-Line Phase | Rackmount |
| connectivity | |
| Connector, Port or Interface Type(s) | USB Connection |
| Battery Backup Connectivity | NEMA L5-20P |
| dimension | |
| Height in Inches Weight of the product measured in pounds. | 4.75 |
| Depth in Inches The overall width of the product, measured left to right. | 16.9 |
| power | |
| Power Capacity (VA) | less than 10 minutes |
| Rack Units The power supply’s voltage, which ultimately powers the device. | 60-150V |
| VA Rating Output power capacity, expressed in Watts (W), refers to the maximum amount of power a battery or device can provide. | 1800 |
| Output Voltage | 6 |
| warranty | |
| Warranty Information | ANSI C62.41 Category B/ISTA Procedure 1A/UL 1778 4th Edition and CSA 22.2 No 107.3/FCC Part 15 (Class A) – CISPR22 Class A (RFI)/ WEEE and ROHS2 REACH |
| True Color Items of a particular grouping, as merchandised and labeled by a manufacturer | Liebert GXT5 |
| Operating Temperature (Degrees) Operating temperature, expressed in degrees Fahrenheit, is the temperature range in which a battery or device can safely and properly operate. | 32 – 104 deg F |
