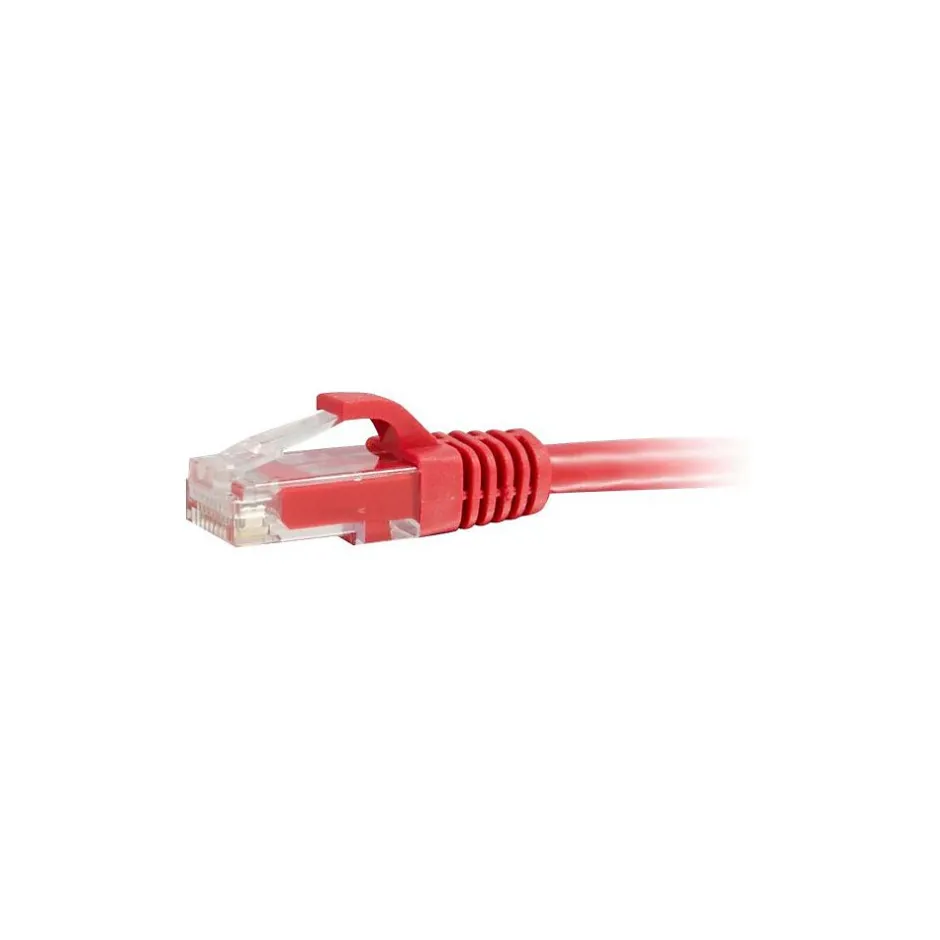

Ethernet Cables<C2G Cables to Go 7ft Cat6 Snagless Unshielded (UTP) Network Patch Cable – Red
$7.89
The C2G ® seven-foot red Cat6 snagless unshielded Ethernet network patch cable features RJ-45 male connectors on both ends for enhanced connectivity. This male/male cable with PVC jacket truncates both impedance and structural return loss. With its 24 AWG stranded bare copper conductor, it minimizes near-end crosstalk levels. The patch cable maintains the twist spacing throughout the line up to the termination point. This cable is compatible with network adapters, hubs, switches, routers, DSL/cable modems, patch panels and other high performance networking applications.
- Category 6 for Network Device
- RJ-45 Male
- 7ft
- Red
- PVC Jacket for added durability and 24 AWG stranded bare copper conductors for excellent signal transmission
- Meets RoHS, TIA/EIA standards and certifications
- Contact material: 50 micron gold-plated copper alloy
- Compatible with network adapters, hubs, switches, routers, DSL/cable modems, patch panels and other high performance networking applications
- Comes in red color
- Diameter: 6.2 mm + 0.3 mm OD, 0.98 + 0.05 mm conductor, 0.6 mm minimum average thickness
- Voltage rating: 30 V
- Resistance: 9.38 ohm/100 m (maximum) DC conductor, 100 ohm insulation
- Capacitance: 5600 pF/100 m, Propagation delay: 545 ns/100 m (maximum), Delay skew: 45 ns/100 m (maximum)
- Temperature: 60 deg C
- Snagless design protects clips while plugging and unplugging operation
- Perfect for Gigabit 1000base-T, 100base-T, 10base-T (IEEE 802.3), 4/16 Mbps Token Ring (IEEE 802.5), 100 VG-Any LAN, 100 Mbps TP-PMD, voice and T1
- Weight: 0.22 lbs.
- Comes with lifetime warranty
| Attribute name | Attribute value |
|---|---|
| Data Transfer Rate (Gbps) Data Transfer Rate is the highest rate at which a device can transfer data (in Mbps). For devices with upload and download capabilities, the maximum data transfer rate always refers to download speeds. | 100 |
| Cable Length (ft) | Audio/Video |
| End 2 Connector Type | PVC |
| Device Type The primary color of the product | Red |
| Conductor Material Numerical Value of AWG rating of cable up to 40. | 24 |
| Connector Finish Actual manufacturer name for the color of the product. | Red |
| End 1 Connector Type | Male to Male |
| Ethernet Does the product contain an ethernet port or connector | Yes |
