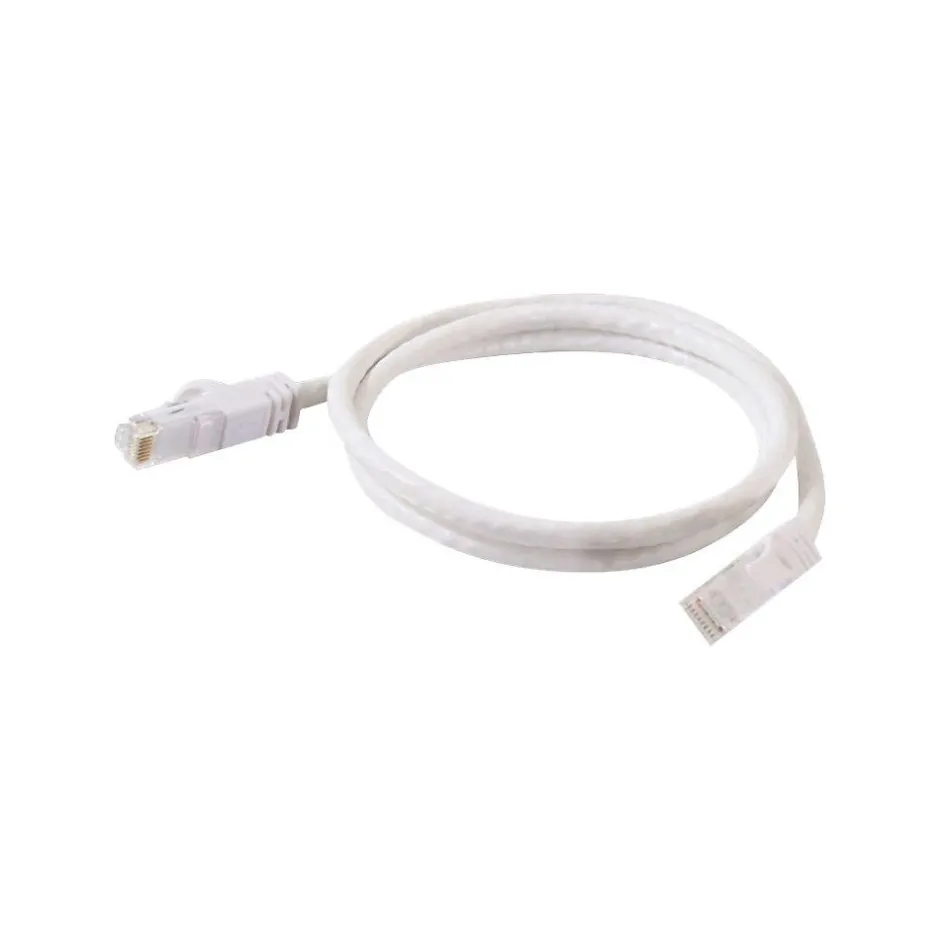

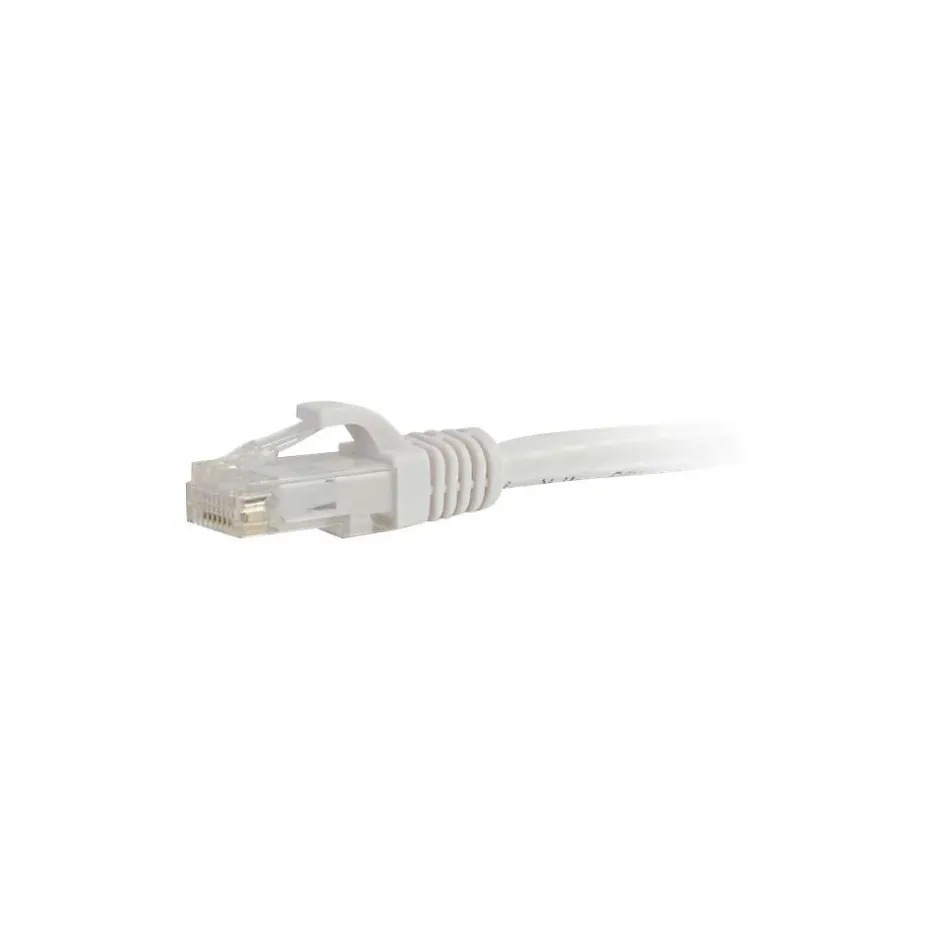

This C2G 6′ white Cat6 snagless unshielded Ethernet network patch cable features RJ-45 male connectors on both ends for enhanced connectivity. This male/male cable has a PVC jacket, and it truncates both impedance and structural return loss. It features a 24 AWG stranded bare copper conductor and minimizes near-end crosstalk levels. This patch cable maintains the twist spacing throughout the line up to the termination point. This cable is compatible with network adapters, hubs, switches, routers, DSL/cable modems, and patch panels and is ideal for high performance networking applications.
- Cable length: 6′
- Connections: one RJ-45 male connector on both ends
- Connectivity: Wired
- PVC Jacket for added durability and 24 AWG stranded bare copper conductors for excellent signal transmission
- Meets RoHS, TIA/EIA standards and certifications
- Compatible with network adapters, hubs, switches, routers, DSL/cable modems, patch panels and other high performance networking applications
- Comes in white color
- Diameter: 6.2 mm + 0.3 mm OD jacket, 0.98 + 0.05 mm insulation, thickness: 0.6 mm jacket
- Voltage rating: 30 V
- Resistance: 9.38 ohm/100 m (maximum) conductor
- Impedance: 100 ohm, Capacitance: 5600 pf/100 m, Propogation delay: 545 ns/100 m (maximum), Delay skew: 45 ns/100 m (maximum)
- Temperature: 60 deg C
- Snagless design protects clips while plugging and unplugging operation
- Perfect for Gigabit 1000base-T, 100base-T, 10base-T, 4/16 Mbps Token Ring, 100 VG-AnyLAN, 100 Mbps TP-PMD and 55/155 Mbps ATM
- Weight: 0.18 lbs.
- Comes with lifetime warranty
- Contact material: 50 micron gold-plated copper alloyCompatible with network adapters, hubs, switches, routers, DSL/cable modems, patch panels and other high performance networking applications
- Comes with lifetime warranty
| Attribute name | Attribute value |
|---|---|
| Data Transfer Rate (Gbps) Data Transfer Rate is the highest rate at which a device can transfer data (in Mbps). For devices with upload and download capabilities, the maximum data transfer rate always refers to download speeds. | 100 |
| Cable Use | Copper |
| Warranty Information | RJ45 |
| Cable Jacket Material | Computer |
| Color Family | 6 |
| Cable Gauge (AWG) | Gold-Plated |
| Cable Length (Inches) Actual manufacturer name for the color of the product. | White |
| End 1 Connector Type | Male to Male |
| Ethernet Does the product contain an ethernet port or connector | Yes |
